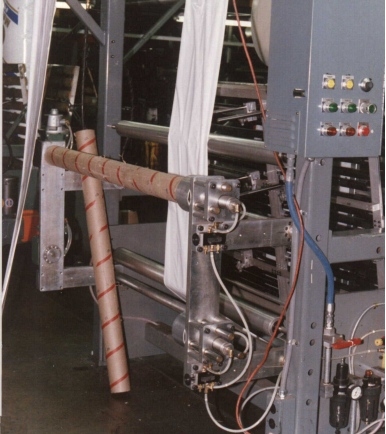

Winder Assembly

WA-84 WINDER ASSEMBLY

DESCRIPTION: A dual spindle, air driven, core type winder to wind blown film webs. The air driven spindles and the air closed spindle chucks are mounted on movable frames to provide width adjustment. The movable frames slide on cross shafts mounted between the post-gusseter frames. The fiber cores are captured between the driven spindles and the spindle chucks. Pneumatic pressure regulators and flow controls are provided to control the speed and torque of the winder. The spindle chucks are opened and closed by hand operated valves.

A safety shutoff valve, filter-regulator, and lubricator are provided.

SPECIFICATIONS:

  • MAXIMUM WEB WIDTH: 84 inches.

  • MAXIMUM WINDER SPEED: 150 feet per minute.

  • MAXIMUM ROLL DIAMETER: 34 inches.

  • CORE SIZE: 3 inch diameter, up to 84 inch long fiber cores.

  • DIMENSIONS: 103 inches wide X 64 1/2 inches high X 25 inches long.

  • WEIGHT: approximately 650 pounds.

UTILITY REQUIREMENTS:

  • AIR: 80 PSI, CFM dependent on process.
