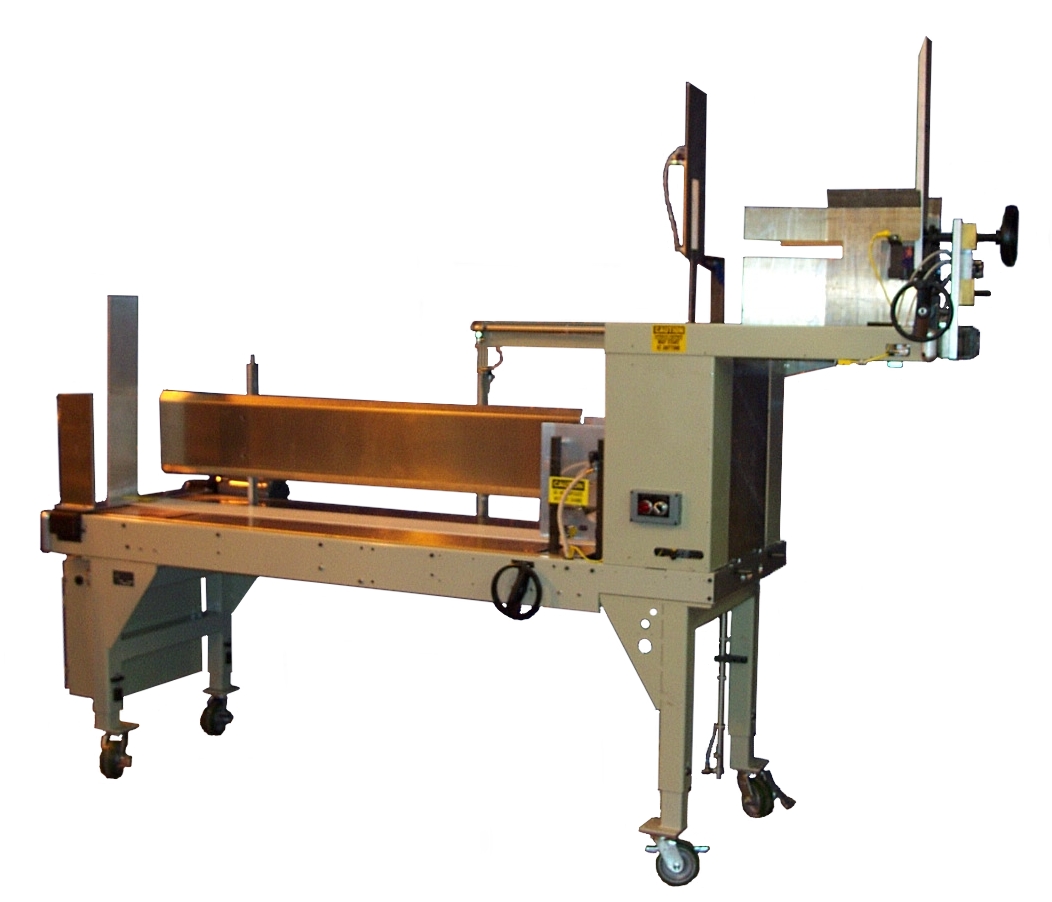

TLC-4 TRAY LOADING CONVEYOR 4
A free standing loading conveyor system attaching to the PAD-O-MATIC 360W to feed stacks of
styrene foam packaging trays into the denester magazine of the PAD-O-MATIC 360W.
The TRAY LOADING CONVEYOR 4 was designed to allow the person supplying trays to the denester
of the PAD-O-MATIC 360W to stage a number of stacks of trays on the belt of the tray loading conveyor, eliminating
the need to constantly feed the denester magazine, allowing time for other tasks. The belt of the tray loading
conveyor is 36 inches from the floor, providing a means of supplying the padding machine without repetitive lifting.
Stacks of trays placed on the conveyor belt are advanced onto an elevator. The elevator lifts the
stacks to the feed height of the padding machine denester, advances the stack forward onto the drop gates of the tray
loading conveyor, and drops the stack into the denester of the padding machine.
The TRAY LOADING CONVEYOR 4 is mounted on castors to provide easy movement to the padding machine,
and attaches with docking pins. The tray loading conveyor power, control, and air are supplied by plugs into receptacles
on the electrical enclosure of the padding machine.
The TRAY LOADING CONVEYOR 4 has a PLC controller and variable frequency drive control mounted in an
enclosure. All electrical meets NEMA and JIC standards. There is a conveyor mounted OFF/ENABLE selector switch to
control the loading conveyor.
POWER: 480 VAC, 3 PHASE, 1 AMP, 60 HZ (supplied from PAD-O-MATIC 360W). Other voltages
and frequencies available, depending on padding machine voltage.
