TRAY LOADING CONVEYOR 3

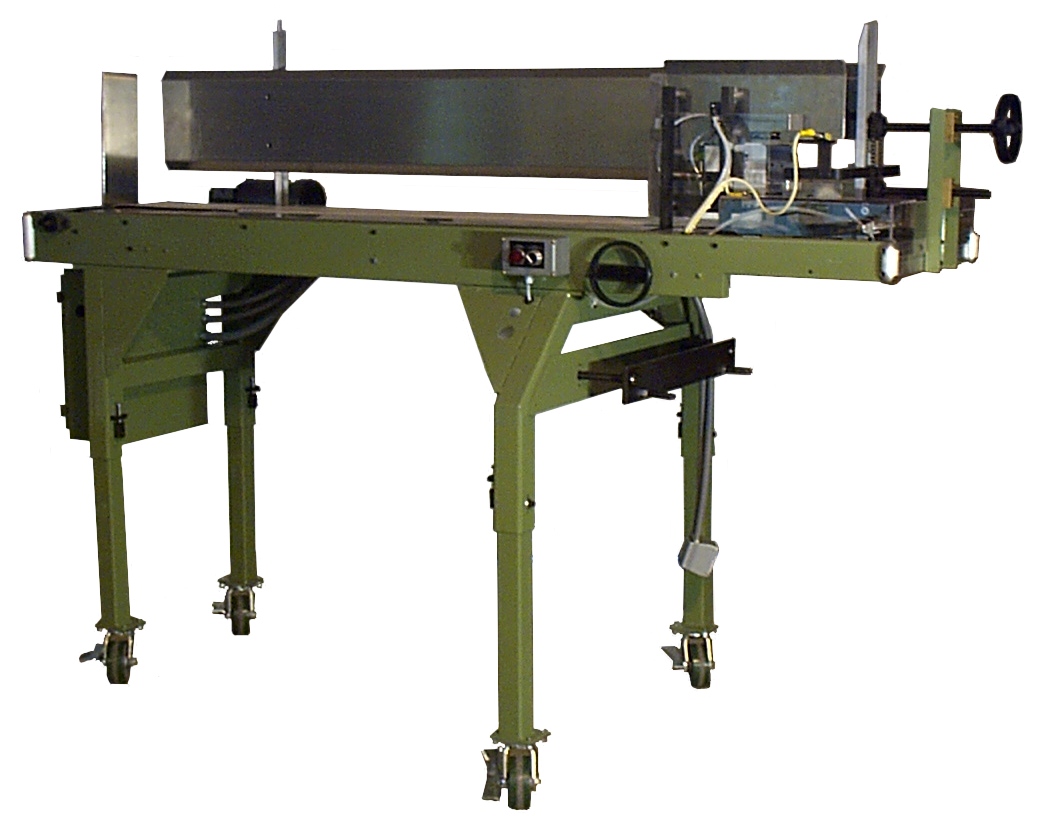

DESCRIPTION: A free standing loading conveyor system attaching to the PAD-O-MATIC 360W to feed stacks of styrene foam packaging trays into the denester magazine of the PAD-O-MATIC 360W.

The TRAY LOADING CONVEYOR was designed to allow the person supplying trays to the denester of the PAD-O-MATIC 360W to stage a number of stacks of trays on the loading conveyor, eliminating the need to constantly feed the denester magazine, allowing time for other tasks.

The TRAY LOADING CONVEYOR is mounted on castors to provide easy movement to the PAD-O-MATIC 360W, and attaches with docking pins. The TRAY LOADING CONVEYOR power, control, and air are supplied by plugs into receptacles on the PAD-O-MATIC 360W.

The TRAY LOADING CONVEYOR has a PLC controller and Allen Bradley variable frequency drive control mounted in an enclosure. All electrical meets NEMA and JIC standards. There is a conveyor mounted OFF/ENABLE selector switch to control the LOADING CONVEYOR.

SPECIFICATIONS:

  • TRAY SIZE: NUMBER 2P through NUMBER 16P

  • MACHINE SIZE: 4 feet wide X 8 feet long X 7 feet high.

UTILITY REQUIREMENTS:

  • POWER: 480 VAC, 3 PHASE, 1 AMP, 60 HZ (supplied from PAD-O-MATIC 360W) Other voltages and frequencies available, depending on padding machine voltage.

  • AIR: 1 CFM, 80 PSI minimum pressure clean dry air (supplied from PAD-O-MATIC 360W).
